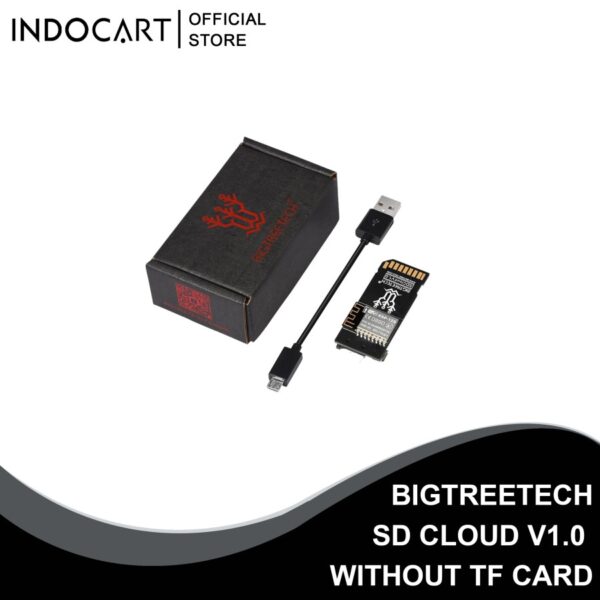

INDOCART Board 3D Printer Bigtreetech SD Cloud V1.0 without TF Card

Kode Produk:
V-F-BRD-SDCLOUDV1.0

Bisa digunakan pada type:
Any SD card interface that communicates via SPI can be plugged in and used directly. Such as :
BIGTREETECH SKR series motherboard, GTR motherboard, BIGTREETECH TFT24 V1.1, BIGTREETECH TFT35 V3.0, BIGTREETECH TFT35-E3 V3.0 and so on.

Module parameters:
The module adopts ESP-12S, which is based on ESP8266’s low-power UART-WIFI chip module
The main frequency supports 80MHz and 160MHz
Spectrum range: 2412-2484MHZ – Logic voltage: DC 3.3v – USB input voltage: DC 5V – Size: SD-24mm *58.3mm; TF – 24 mm * 45.5 mm – Transmission file name format requirements: only support the file name consisting of ASCII code
TF card memory: 128M S

Notic : all SD card interfaces that communicate via SDIO mode cannot be used;
For example: BIGTREETECH TFT35 V2.0!!

Pastikan anda mendapatkan kualitas terbaik hanya di IndoCart.
